5x5x5 cube: Notation
In this page we sum up the essential about the 5x5x5 cube to understand the tutorials perfectly.
Parts of the cube
Faces are the plane surfaces that contain 25 stickers. There are 6 faces.
As for the pieces of groups of pieces, we can find centres, edges and corners.
Centres
For us, centres are not the central pieces of each face, but the central 3x3-sticker surfaces that define the colour of every face. There are 6 centres, with 9 stickers each.
Edges
Likewise, we call edge to the three-piece group, with two stickers each. There are 12 edges in the cube.

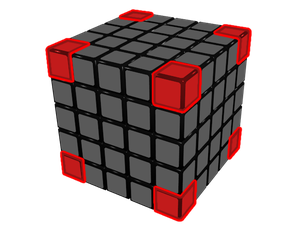

Corners
Corners are the pieces containing 3 stickers. There are 8 corners.
As for the inner layers, these are named after the outer counterpart, but with lower case letters (except for M, E y S layers, which are upper case because there can be no confusion with other layers).
In English they are name as follows:
Matrix notation
To simplify the understanding of certain algorithms, we use a matrix notation to point the position of a given piece in a given face. Said position is indicated by its row and its column, like this:
Piece position = (row, column)
Example: The piece located in the top right position is the (1,1); that means it is in row 1, column 1. Likewise, the piece located in row 3, column 2 is the piece called (3,2).
Turns and rotations of the whole cube
In the following pictures, red arrows indicate clockwise turns and blue arrows indicate counterclockwise turns.
Turns of outer layers
To indicate a clockwise turn, the letter of the face is written.
Example: R
To indicate a clockwise turn, the letter of the face and an apostrophe are written.
Example: R’
To indicate a double turn, the letter of the face and a number 2 are written.
Example: R2
Turns of inner layers
The turns of inner layers are indicated just like the outer layers, but using lower case letters.
Examples:
Clockwise turn: r
Counterclockwise turn: r’
Double turn (180º): r2
Turns of inner and outer layers at same time
We can also turn both the inner and the outer layer at the same time; this is indicated with the upper case and the lower case letters in
brackets.
Examples:
Clockwise turn: (Rr)
Counterclockwise turn: (Rr)’
Double turn (180º): (Rr)2
As for the rotations of the whole cube, they are indicated with letters x, y and z as follows:
Just the letter if it is a clockwise turn.
Example: x
The letter and an apostrophe if it is a counterclockwise turn.
Example: z'
The letter and a number 2 if it is a double turn.
Example: y2
